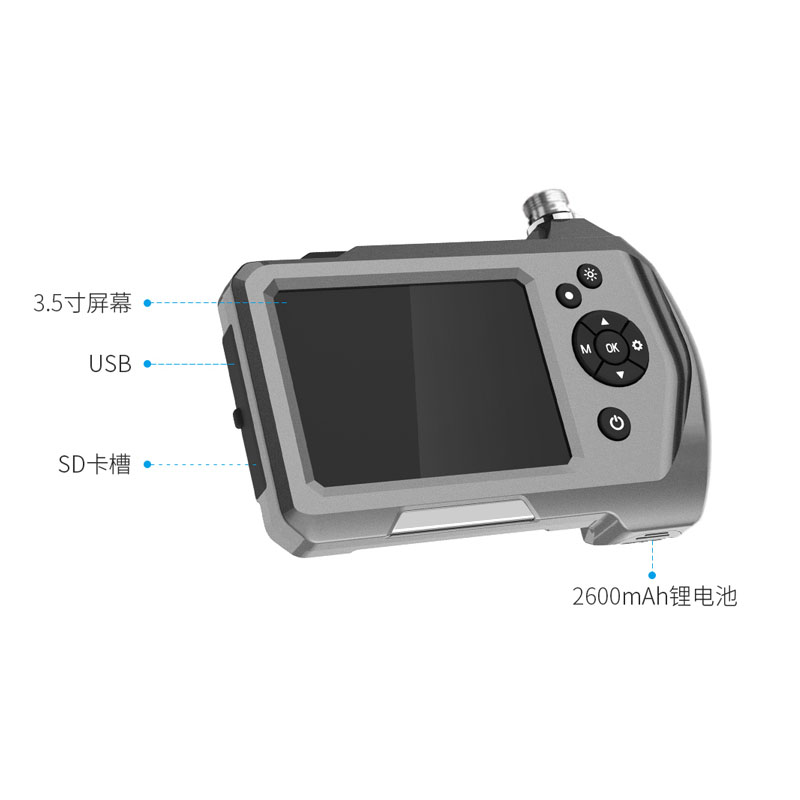

● 3.5-inch display with a resolution of 320 * 240.

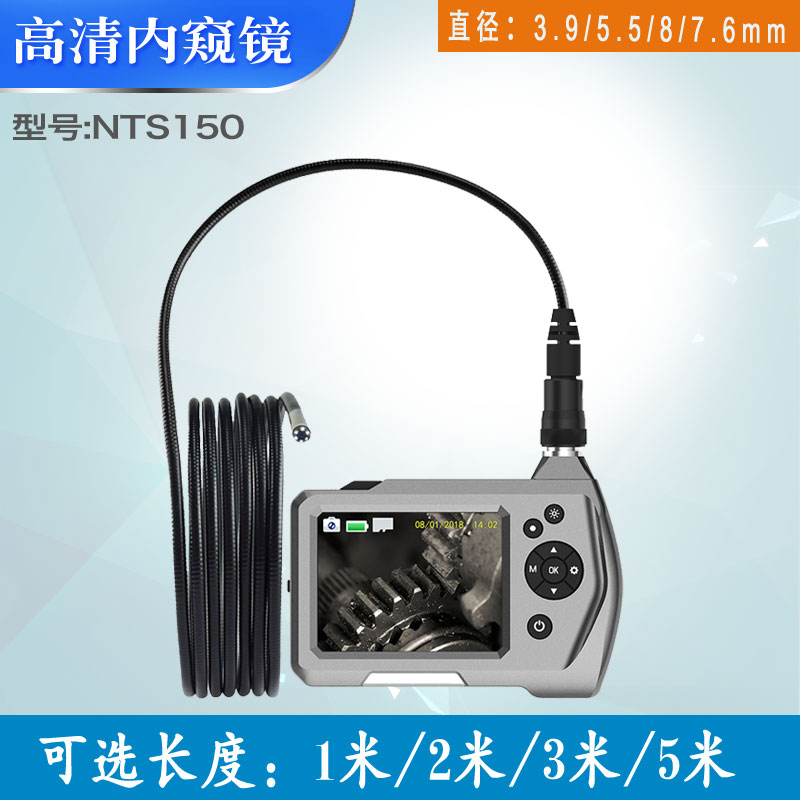

● Lens diameter:3.9 / 5.5 / 8 / 7.6MM optional
● 1 million pixel waterproof lens tube.
● Hand-held and portable design, easy to operate,2x zoom.
● 2600MAHRechargeable battery, extending working time.
● Super bright 6LED lighting at the front end to optimize the lighting system design.
Applications:
- For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
- For Maintenance of Plumbing and Wiring behind walls
|
Product List |
|||
|
No. |
Product name |
Quantity |
|
|
1 |
Endoscope host |
1 |
|
|
2 |
Camera |
1 |
|
|
3 |
Memory Card（32G) |
1 |
|
|
4 |
Data/charging cable |
1 |
|
|
5 |
Manual |
1 |
|
|
6 |
Tool box |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
Optional accessories |
|||
|
1 |
|
|
|
|
2 |
|
|
|
|
3 |
|
|
|
| Item | Parameter |
|
Specifications |
||
|
Camera |
Pixel: |
1000000Pixel/5000000Pixel |
|
Camera diameter: |
3.9/5.5/8/7.6/14.5mm |
|
|
Camera length: |
28/30/35/27/48mm |
|
|
Focal length: |
20mm~80mm |
|
|
Viewing angle: |
70° |
|
|
Lighting: |
6×LED |
|
|
Shell Material: |
stainless steel |
|
|
Water-Proof: |
IP67 |
|
|
Working line length |
1M/2M/3M/5M |
|
|
Display |
Display |
3.5 inch monitor |
|
Screen resolution |
320×240 |
|
|
Luminance regulation |
Manual adjustment (3-level adjustment) |
|
|
Data I/O port |
Micro-USB |
|
|

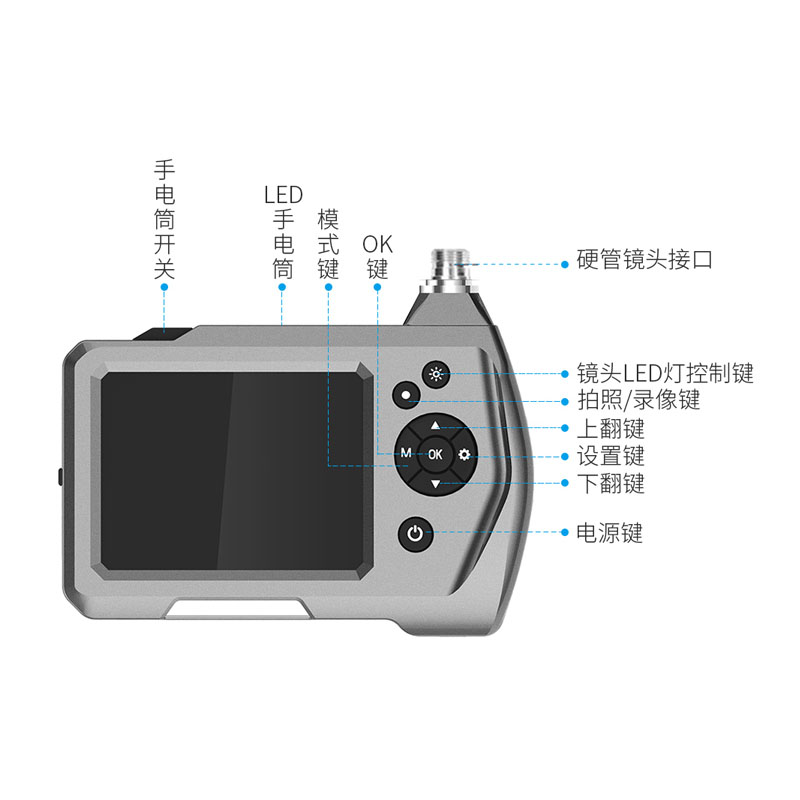

Key function |
Menu operation, video, photo,2X zoom |
|
|
Image function |
Image flip |
|
|
Image resolution |
960 ×720 |
|
|
Video resolution |
960 × 720/1440 × 1080 |
|
|
Storage card |
Support TF card, maximum support 32G |
|
|
Language |
Chinese/German/French/Spanish/English/Portuguese/Japanese/Russian |
|
|
Power Supply |
3500mAH lithium battery, 4-5 hours |
|
|
Working temperature |
0 ℃ ~ 50 ℃ |
|
|
Probe working temperature |
-10 ℃ ~ 60 ℃ |
|
|
Size/weight |
300*250*75MM /1.5kg |
|
